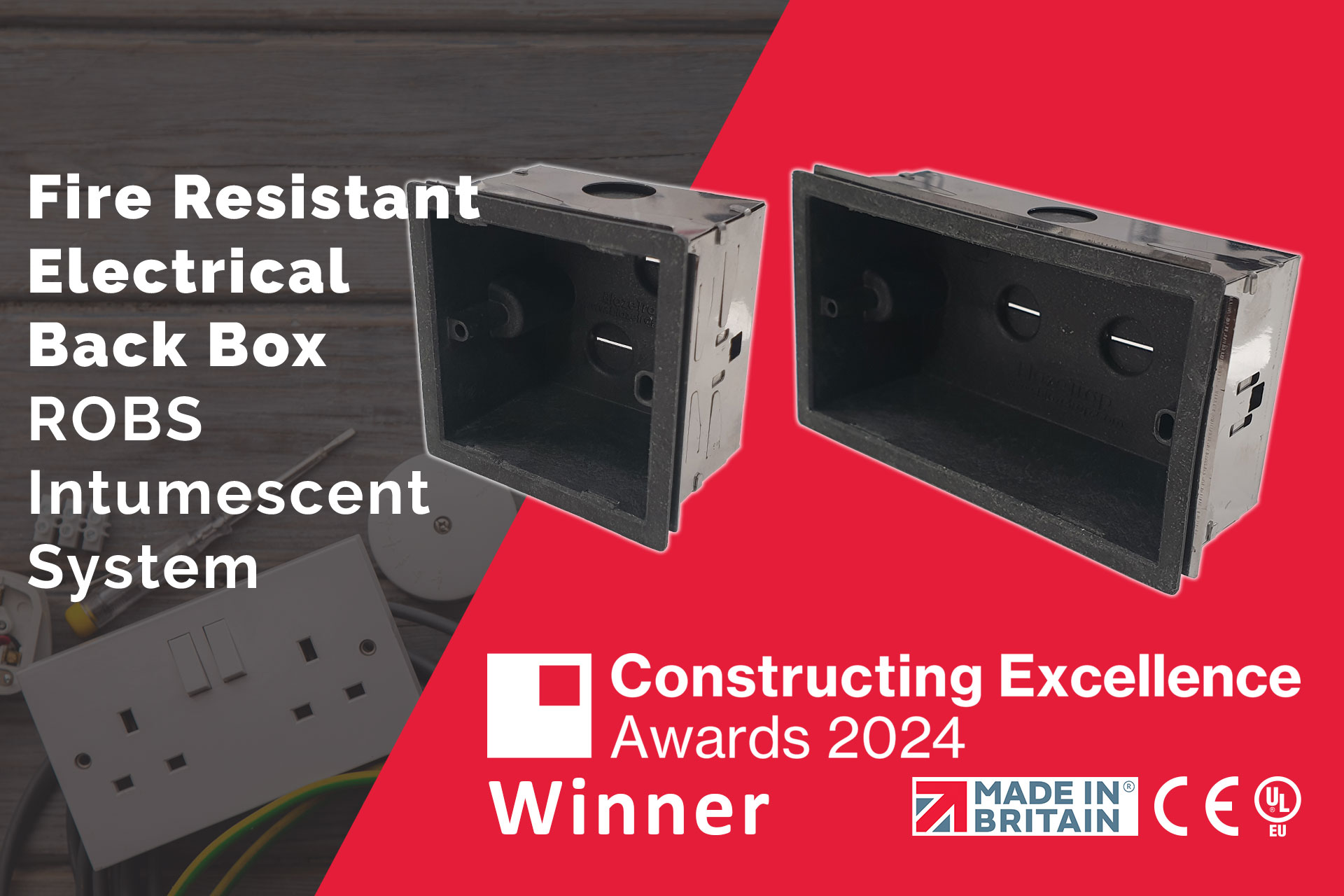

Advanced Fire Protection: Many current electrical back boxes are designed only for electrical connections with little fire protection. Blazetrap® ROBS addresses this with a Stainless Steel Electrical Back Box featuring a unique injection-moulded Intumescent insert (ROBS Intumescent System) made from high-quality exfoliated graphite.
Innovative Technology: The ROBS Intumescent System reacts when exposed to fire, forming a solid char around cables, thus insulating the substrate, thereby starving the fire of essential elements for combustion and preventing the passage of fire from one compartment to another. This technology is patented and trademarked.
Complete System: No separate box outers needed, eliminating the risk of incorrect sizes, depths, and materials.
Ease of Installation: Integrated pushout fixing tabs, quick installation of the ROBS intumescent System, no sealants or supporting brackets needed, one size, Blazetrap® ROBS fits all cavity wall depths.
Cost Efficiency: Reduces installation costs, requires zero maintenance, and offers a longer product lifespan.
Traceability: Full product traceability from manufacture to end user and back again.
Product Specifications: ROBS 1 Single Gang Box: 74x74x50mm and ROBS 2 Double Gang Box: 134x74x50mm.
Liability Reduction: The Blazetrap® Rapid Outlet Box System (ROBS) significantly reduces liability risks associated with electrical installations as well as different trade use installations. Unlike alternative products on the market, such as Putty pads, which require separate purchases from different suppliers and may not be fire-rated or tested together, Blazetrap® offers a complete, tested system. This comprehensive solution ensures enhanced fire protection and compliance with safety standards, providing peace of mind for specifiers, design engineers, architects, installation contractors, main contractors, development owners, and residents. The liability is effectively omitted, eliminating risks associated with incomplete or untested systems.
Experience the future of Passive Fire Protection with Blazetrap® ROBS. Ensure safety and compliance with this cutting-edge solution.

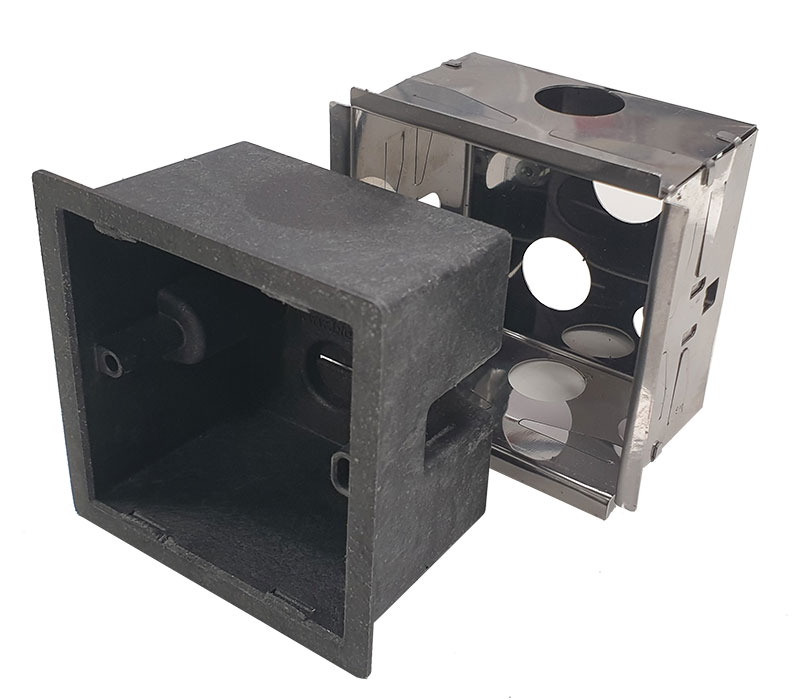

Blazetrap® ROBS 1 Single Gang Electrical Back Box
Blazetrap® ROBS 1 Single Gang Electrical Back Box
Blazetrap® ROBS 1 Single Gang Electrical Back Box

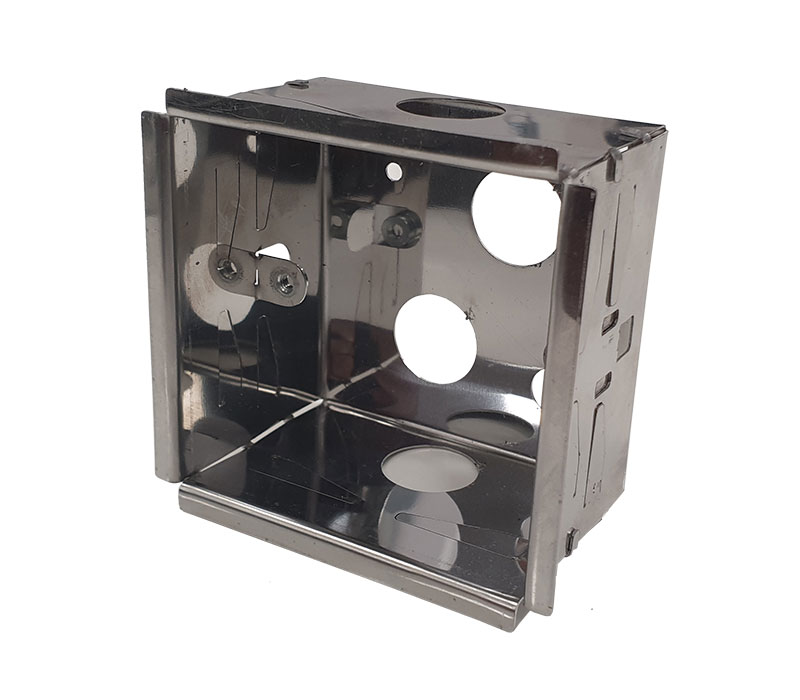

Blazetrap® ROBS 1 Single Stainless Steel Back Box

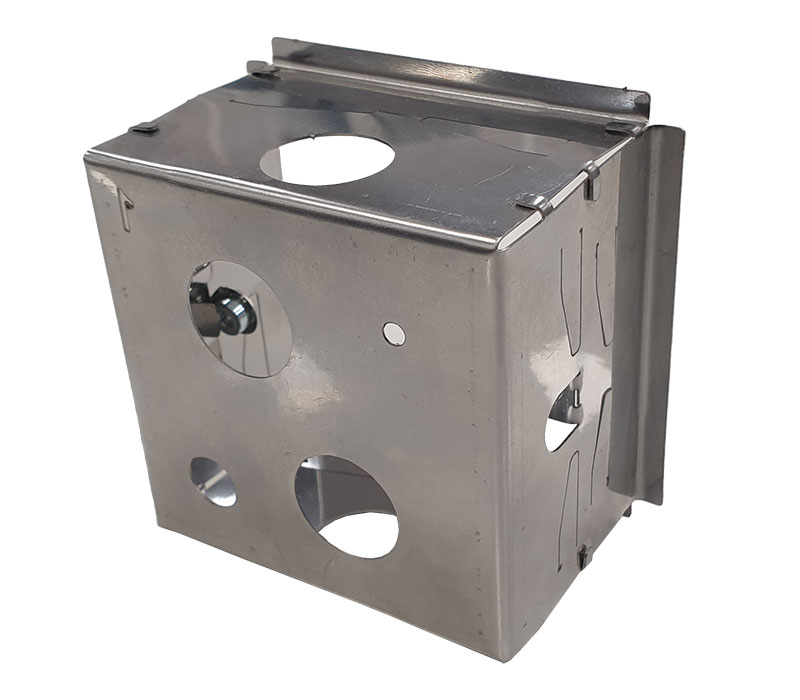

Blazetrap® ROBS 1 Single Stainless Steel Box Back View
Blazetrap® ROBS 1 Single Stainless Steel Box Side View

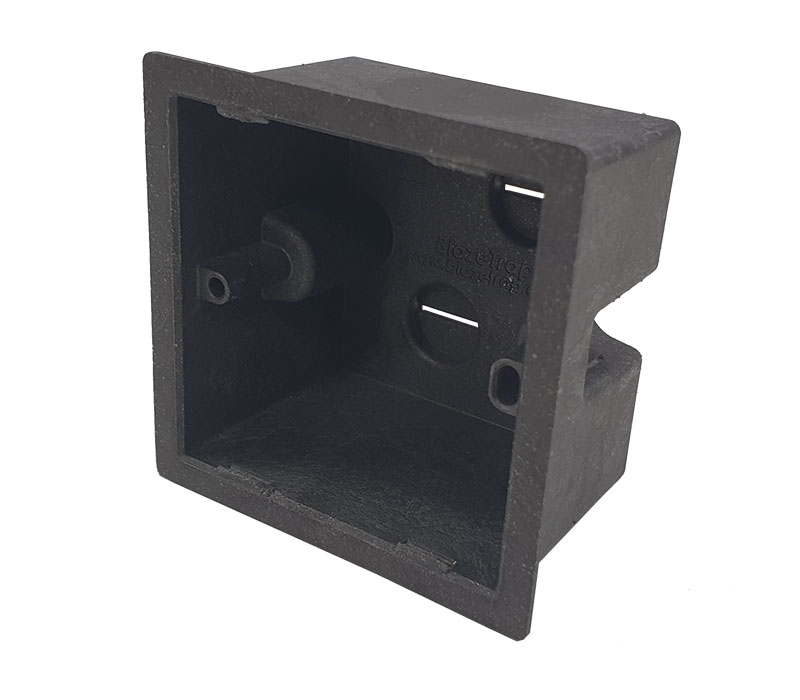

Blazetrap® ROBS 1 Single Intumescent System Insert

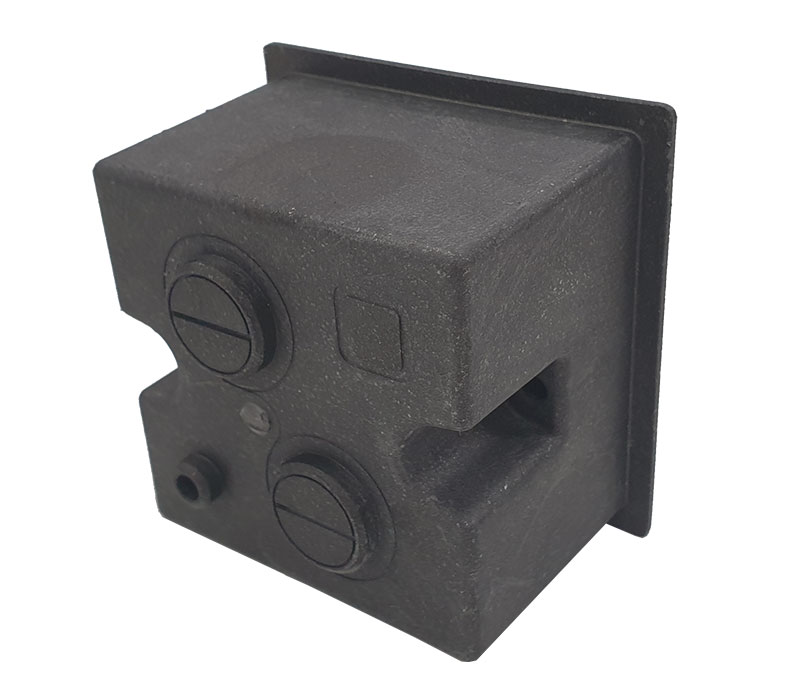

Blazetrap® ROBS 1 Single Intumescent System Insert Back View

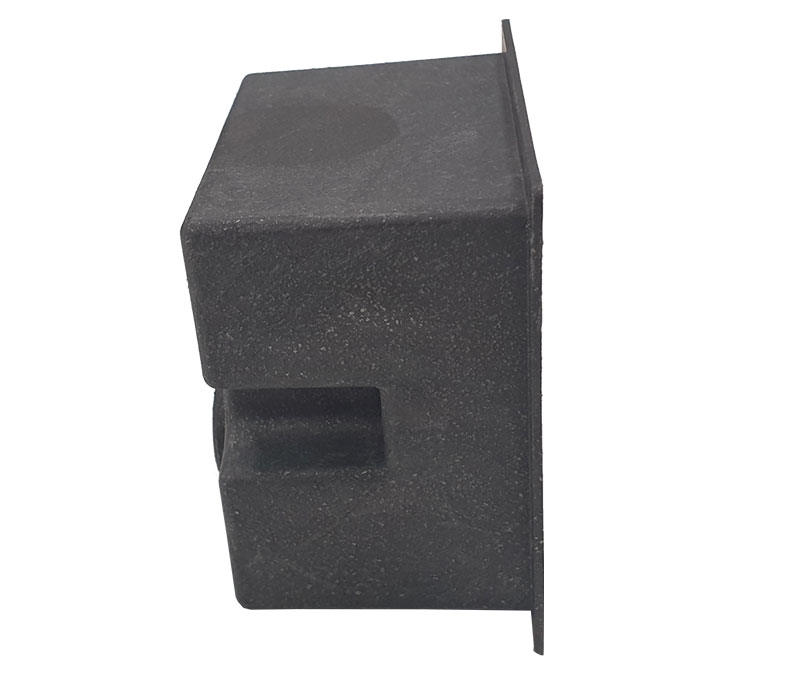

Blazetrap® ROBS 1 Single Intumescent System Insert Side View
Blazetrap® ROBS 2 Single Gang Electrical Back Box
Blazetrap® ROBS 2 Double Gang Electrical Back Box
Blazetrap® ROBS 2 Double Gang Electrical Back Box
Blazetrap® ROBS 2 Double Stainless Steel Back Box
Blazetrap® ROBS 2 Double Stainless Steel Box Back View
Blazetrap® ROBS 2 Double Stainless Steel Box Side View

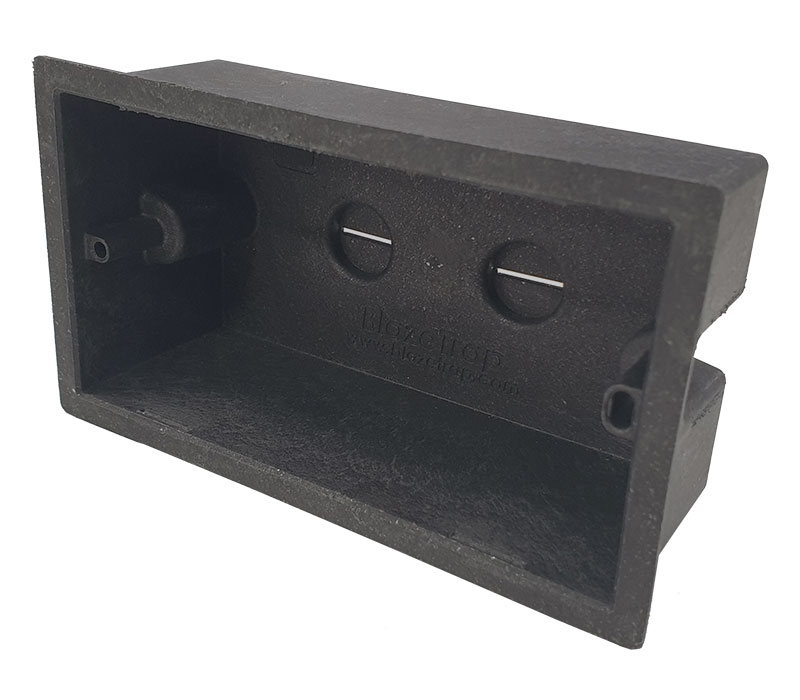

Blazetrap® ROBS 2 Double Intumescent System Insert

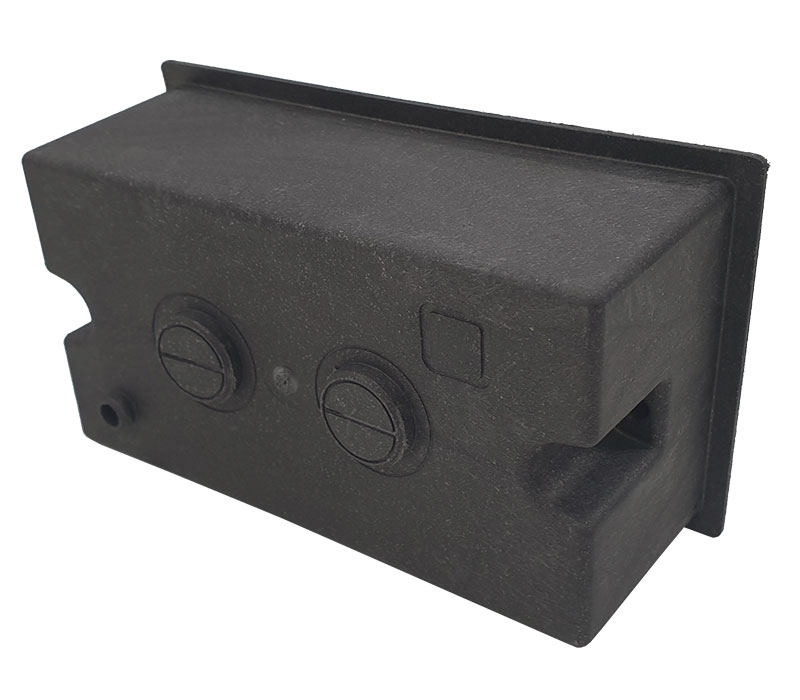

Blazetrap® ROBS 2 Double Intumescent System Insert Back View

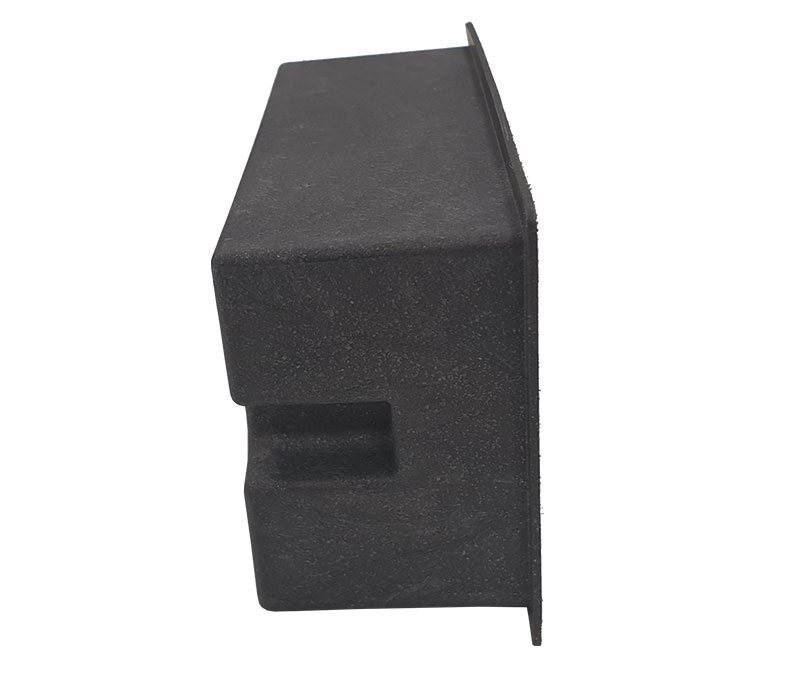

Blazetrap® ROBS 2 Double Intumescent System Insert Side View
| ROBS Outer: | 430 Stainless Steel |
| Heat Resistance: | 815c in continuous service |
| Corrosion: | Resistance to acid/moisture |
| ROBS Intumescent System Insert: | Halogen-free based on expandable graphite |
| Material Structure: | Injection Molded |
| Liner Thickness: | 0.5-2mm |
| Start of Reaction: | From ca. 175°C |
| Expansion Ratio: | Ca. 16 times |
| Expansion Pressure: | Ca. 0.45 |
| (N/mm2) Colour: | Anthracite grey |
| Fire Tested: | Fire Tested: BS EN 1366-3: 2021 Fire tested for insulated & non insulated walls BS1366-3: 2021 |
| Acoustic Tested: | BS EN ISO 10140-2:2010 |
| Product Sizes: | Blazetrap® ROBS 1 Single Gang Electrical Back Box: 74x74x50mm. Blazetrap® ROBS 2 Double Gang Electrical Back Box: 134x74x50mm |
| Electrical Fittings: | Allows for 20mm & 25mm fire shield gland fittings Rear, Top and Bottom cable entry Integrated box fixings suitable for plasterboards 12.5 – 30mm thicknesses |
 2821 |
|
| Blaze Trap Ltd Unit 29 Penraevons Light Industrial Estate, Jackson Road, Leeds, West Yorkshire, LS7 2AP | |
| CE 2821-CPR-0354 | |
| BS EN 1366-3: 2021
Blazetrap® Rapid Outlet Box System (ROBS 1 & 2) For fire compartmentation and / or fire protection or performance |
|
| Essential Characteristics | Performance/Harmonized Technical Specification |
| Reaction to Fire | Class E according to EN13051-1 |
| Resistance to Fire | Resistance to fire performance & field of application in accordance with EN13501-2 See ETA 25/0262 clause - Annex A |
| Dangerous Substances | See ETA 25/0262 Clause 1 |
| Service & Durability | Type: X Intended for use in conditions exposed to weathering in accordance with EOTA technical documents TR024 |
| Acoustic | BS EN ISO 10140 – 2: 2010 |
| Other | Not applicable/No performance determined |
Download the Blazetrap® Rapid Outlet Box System (ROBS): Product Sheet, Safety Sheet, Technical Sheet, European Technical Assessment Sheet (ETA), Certificate of Constancy of Performance Report (CoC) and Declaration of Performance Report (DoP).
The 18th National Constructing Excellence Awards took place on Friday 15th November 2024 and was a fantastic event.
The National Awards showcase excellence in the built environment across England and Wales, bringing together the regional winners from 13 different categories and 4 highly commended projects.
The Constructing Excellence awards play an important role in recognising and inspiring high performance across the sector and paint an impressive picture of excellence and continued improvement right across the country. Blazetrap® Rapid Outlet Box System (ROBS) are delighted to be awarded National Winner of the 2024 Constructing Excellence National Awards, in the category of Innovation.
For more information about these awards please click here
Where to buy the Blazetrap® Rapid Outlet Box System (ROBS).
For wholesale prices, you can purchase the Blazetrap® Rapid Outlet Box System (ROBS) directly from Astroflame (Fire Seals), a trusted name in the industry known for high-quality fire protection products. Astroflame (Fire Seals) provides reliable service and competitive pricing for wholesale orders, making it the ideal choice for larger projects.
If you prefer to buy directly, several online stores offer the Blazetrap® Rapid Outlet Box System (ROBS) with fast delivery options to ensure your project stays on track. Check out these trusted retailers:
Whether you’re managing a large construction project or tackling a building renovation, these retailers make it easy to access the Blazetrap® Rapid Outlet Box System (ROBS), supporting your commitment to fire safety compliance.
If you've got a question about the Blazetrap® Rapid Outlet Box System (ROBS) or need some technical help get in touch with the sales or technical team to discuss your requirements today. Contact details seen below:
